سنسور تشخیص حرکت انسان
حساس به مادون قرمز
p17-0.7D
حساس به مادون قرمز
p17-0.7D

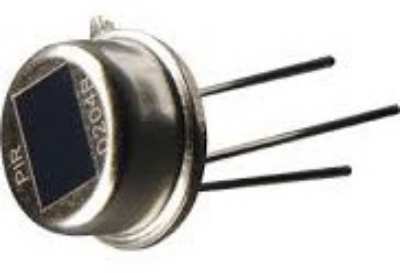

D204B
The pyroelectric infrared sensor detects infrared radiation on the basis of the
characteristics that the polarization of pyroelectric material changes with temperature.
Dual compensated sensing elements are applied to suppress the interference resulting from temperature variation with the EMI components.As a result, the operating stability of the sensor is greatly improved. Our products can be used world wide for many applications. Such as in security systems, burglar alarms, visitor acknowledgement, light switch control and intellectualized toy, etc.
Encapsulation Type : TO-5
IRReceiving Electrode : 2×1mm, 2 elements
Window Size : 5×3.8mm
Spectral Response : 5-14μm
Transmittance : ≥75%
Signal Output[Vp-p] : ≥3500mV
Sensitivity : ≥3300V/W
Detectivity (D*) : ≥1.4
×108 cmHz1/2/W
Noise[Vp-p] : <70mV
Output Balance : <10%
Offset Voltage : 0.3-1.2V
Supply Voltage : 3-15V
Operating Temp. : -30-70ºC
Storage Temp.: -40-80ºC
Test conditions
♦ Ambient temperature 25ºC
♦ Black-body temperature 420K(147°C)
♦ Modulating frequency 1 Hz, 0.3-3.5Hz △f,
♦ 72.5 dB Amplifier
